IEC规格3×10mm,TIME-LEG CERAMIC TUBE FUSE
Ø3×10mm（ICP系列）保险丝规格书
WITH SURGE WITHSTAND FUNCTION: These fuses combines conventional over-current protection to withstand high rush current,short duration pulses.These fuses are suitable to comply with the short circurt requirement of modern compact electronic products.Especially with a neat shrink tube,it can reduce the SPACING requirements.
产品特性: ICP — 慢熔断型(Time-Leg)

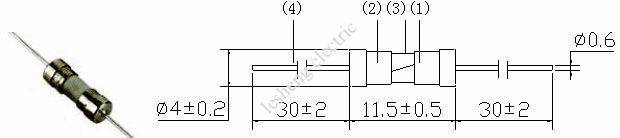

结构STRUCTURE:
(1) WIRE: ALLOY
(2) CAP: BRASS WITH NICKEL PLATED
(3) BODY: CERAMIC TUBE
(4) LEAD: TINNED COPPER WIRE
结合强度： 铜帽与陶瓷管之间的结合应能承受0.5Kg的轴向拉力。
熔断特性:
|
% of Rating |
210% |
275% |
400% |
1000% |
|
250mA–6.3A |
Max.2 min. |
Min.400mS |
Max.10S |
Min.150mS |
Max.3S |
Min.20mS |
Max.150S |
熔化热能值和损耗功率:
|
额定电流 |
额定电压(AC) |
熔化热能值 |
|
250 mA |
250V |
0.80 |
|
315 mA |
250V |
0.70 |
|
400 mA |
250V |
1.38 |
|
500 mA |
250V |
1.87 |
|
630 mA |
250V |
2.09 |
|
800 mA |
250V |
3.60 |
|
1.0 A |
250V |
3.00 |
|
1.25 A |
250V |
4.50 |
|
1.6 A |
250V |
10.0 |
|
2.0 A |
250V |
27.0 |
|
2.5 A |
250V |
31.0 |
|
3.15 A |
250V |
41.0 |
|
4.0 A |
250V |
63.0 |
|
5.0 A |
250V |
97.0 |
|
6.3 A |
250V |
161.0 |
分断电流BREAKING CAPACITY:35A or 10 In whichever is greater,tested with AC for the Low breaking capacity test.
Safety Approvals:(安全认证):
包装: 500支塑袋装；1000支纸盒装；10000支纸箱装；按客户要求特殊包装.
